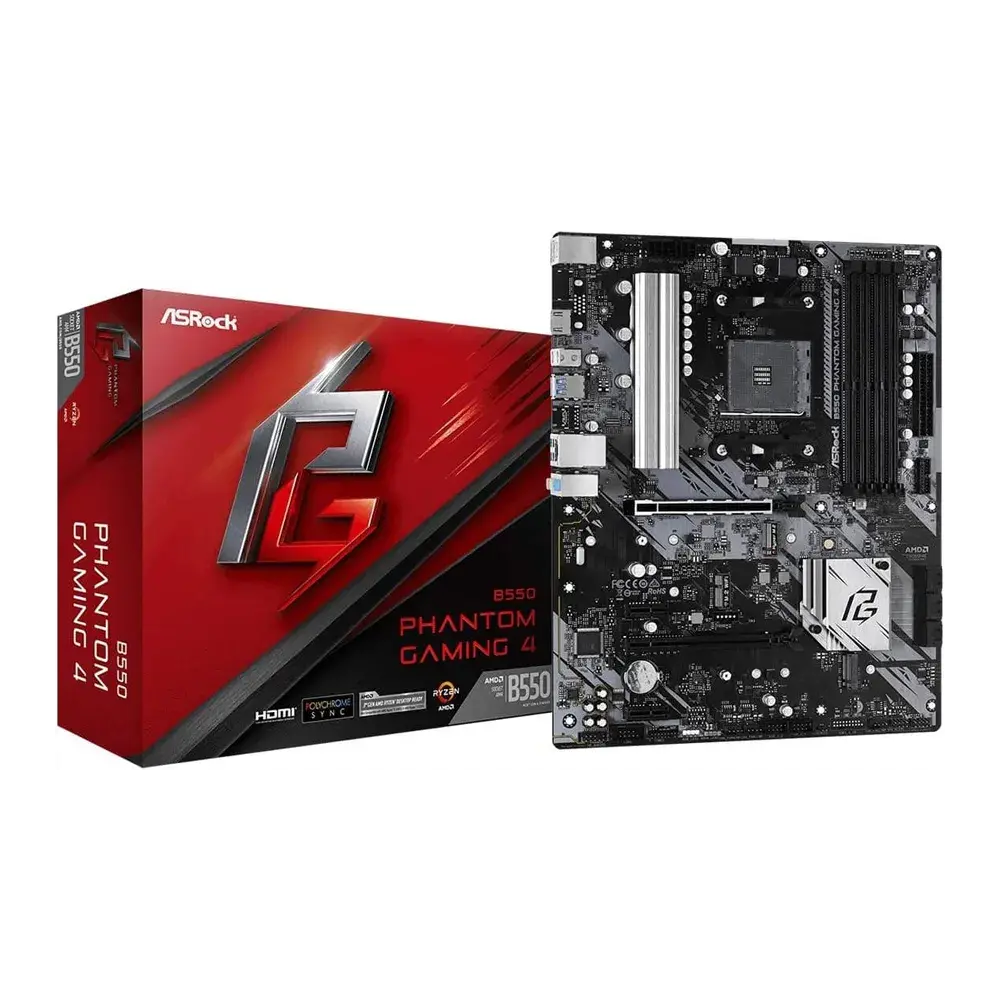

ASRock B550 Phantom Gaming 4 ATX Motherboard – AM4 Socket, DDR4 4733MHz (OC), PCIe 4.0, HDMI, Supports Ryzen 3000 to 5000 Series

✅ Key Features

• Model: B550 Phantom Gaming 4 – ATX motherboard with AMD B550 chipset
• Socket: AM4 – Supports AMD Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
• Memory Support: 4x DDR4 DIMM slots, up to 128GB, 4733MHz (OC)
• Display Outputs: HDMI and D-Sub for flexible video options
• Expansion Slots: 1x PCIe 4.0 x16, 1x PCIe 3.0 x16, 1x PCIe 3.0 x1
• Storage Options: 2x M.2 slots (PCIe Gen4 and Gen3), 6x SATA3 6Gb/s ports
• Networking: Realtek Gigabit LAN for reliable connectivity
• Audio: 7.1 CH HD Audio (Realtek ALC1200 Audio Codec)
• BIOS: 128Mb AMI UEFI Legal BIOS with EZ Mode
• USB Support: Multiple USB 3.2 Gen2, Gen1, and USB 2.0 ports
• Form Factor: ATX – for full-featured desktop builds
• Power Delivery: 6+2 phase power design for stable CPU power
• Fan Headers: Multiple 4-pin fan connectors with thermal control
• OS Compatibility: Microsoft® Windows® 10/11 64-bit
• Use Case: Designed for gaming and high-performance desktop computing

📦 Description

The ASRock B550 Phantom Gaming 4 is a reliable ATX motherboard built around the AMD B550 chipset for broad compatibility with Ryzen 3000 through 5000 series desktop processors. This board combines modern features and robust power delivery to support gaming and multitasking demands.

Equipped with four DDR4 memory slots supporting speeds up to 4733MHz (OC), the motherboard allows up to 128GB of RAM to power demanding applications. Video output options include HDMI and legacy D-Sub connectors to support various monitor types.

Expansion capabilities include a PCIe 4.0 x16 slot for next-gen GPUs and additional PCIe 3.0 slots for other cards. Storage options feature two M.2 slots with PCIe Gen4 and Gen3 support and six SATA3 ports for high-capacity drives.

Networking is handled by Realtek Gigabit LAN, providing stable and fast wired connections. Audio quality is enhanced with a 7.1 channel HD audio codec ideal for immersive sound. The ASRock B550 Phantom Gaming 4 delivers a balanced platform for gaming and general productivity in an ATX form factor.
